Product Features：

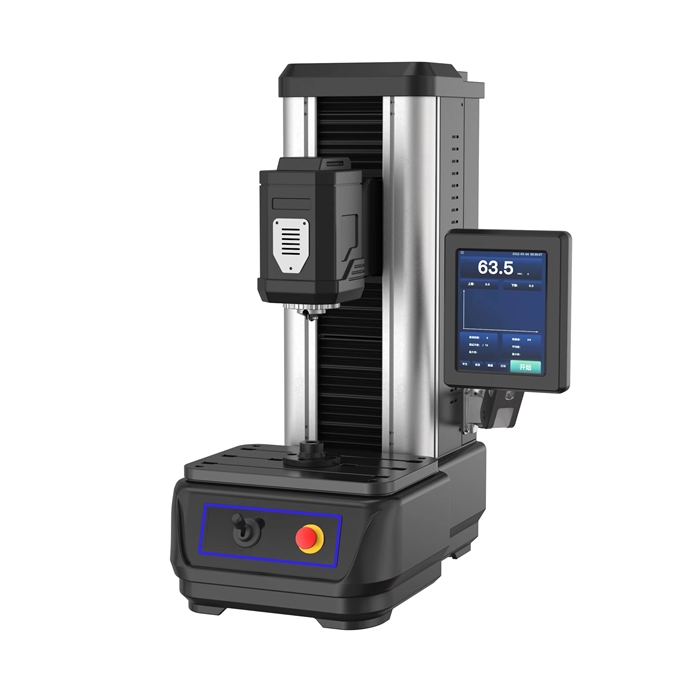

The 10 MHRS-150J automatic Rockwell hardness tester (mobile head) realizes the automatic control of the hardness testing process. The loading system adopts high-precision force value sensor and central controller to form a closed loop to realize the precise control of the test force value. The sounding system uses high-precision displacement sensors, which can obtain a hardness value resolution of 0.1HR.
The equipment stage is fixed, and the hardness test is carried out by the pressure head moving up and down. The fixed test bench can eliminate the coaxiality error caused by the up and down rotation of the traditional lead screw. While improving the test accuracy and repeatability, the stability and working efficiency of the hardness tester are increased.
1. High-speed precision step control system is adopted to realize high-precision and fast test;
2. New design, mobile head structure, using high-precision guide rail to control the precise movement of the head;
3. High-definition LCD touch screen operation, menu-type operation interface, intuitive display and simple operation;
4. Configure a wireless printer to facilitate the printing and saving of test results.
Scope of application:
Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.

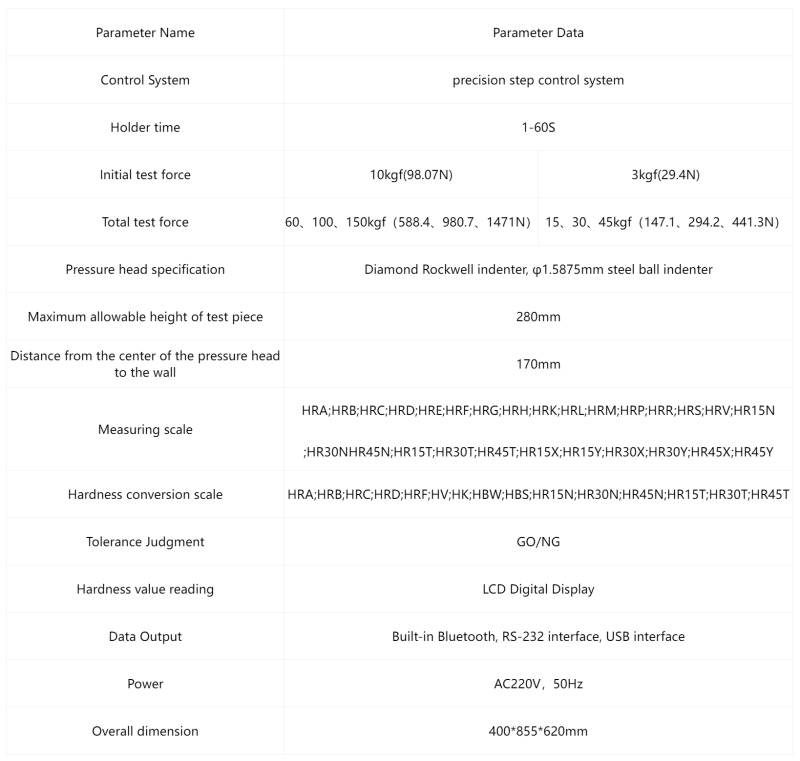

Technical parameters：

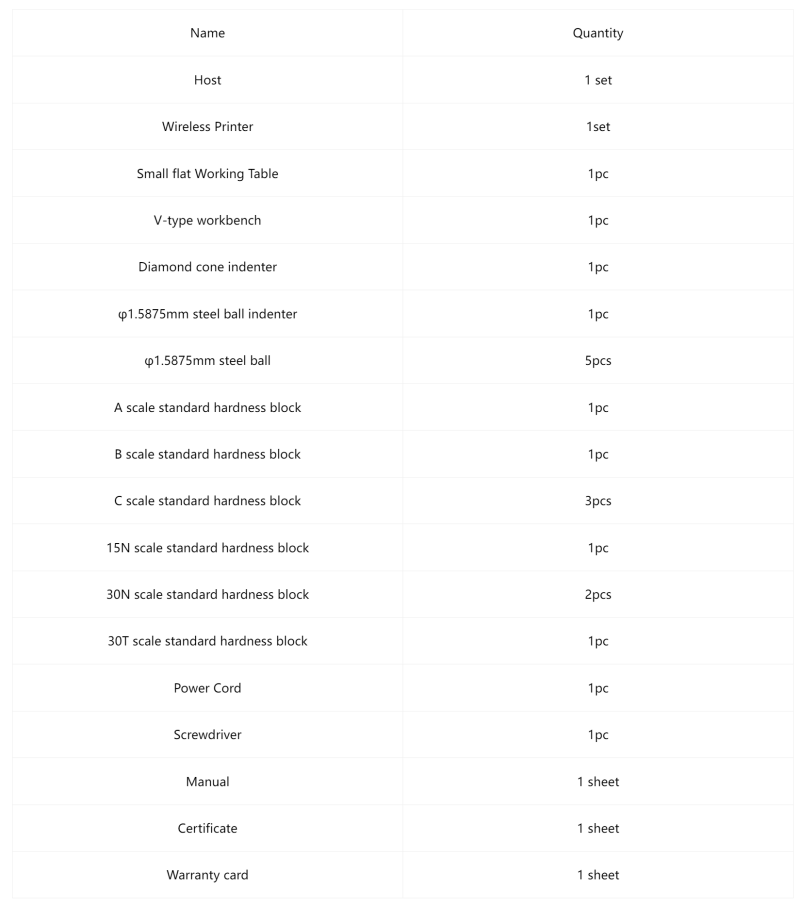

Standard configuration：
