7MHXZD-5A/10A/30A/50A

Product Feature：

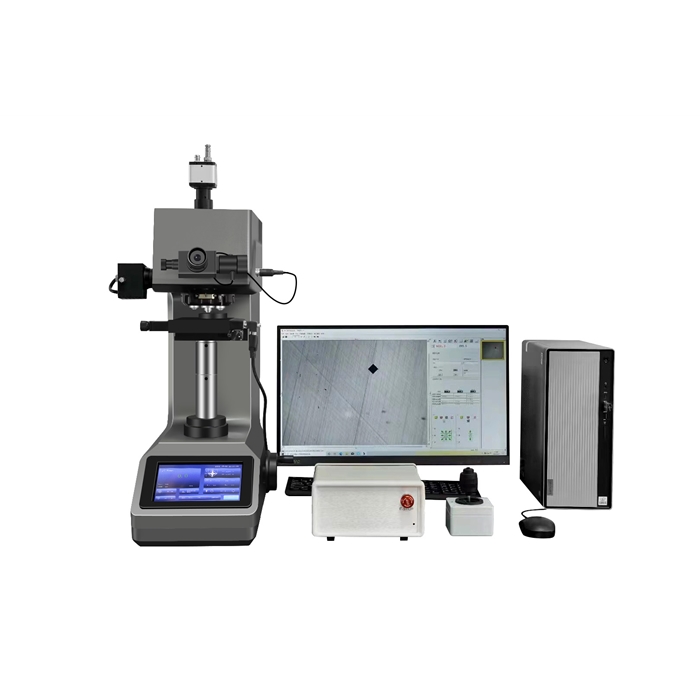

1.Fully Automatic Vickers hardness tester is a high-tech product of opto-mechatronics. The display screen uses a large LCD screen, which is novel and beautiful, with good intuitiveness, operability and reliability. The hardness tester adopts precise structural design in machinery and advanced technologies such as high magnification objective lens and digital display micrometer eyepiece in optics.

2.The shell of the hardness tester is integrally cast, which is more firm and hard than the shell welded by the iron plate, and is not easy to deform; the lifting structure is a worm gear, which is more stable when driving up and down, and the friction loss is small.

3.The hardness tester can also be configured according to the special needs of users. It can take pictures of the measured indentation and metallographic structure of the material. It is suitable for measuring tiny and thin test pieces, parts after surface plating and measuring the micro and Knoop hardness of brittle materials such as agate, glass and ceramics. It is an ideal hardness testing instrument for research and testing by scientific research institutions, factories and quality inspection departments.

4.Excellent path planning module: along the line; Along the line with angle; Free click; Along the horizontal line; Along the longitudinal line; Multiple lines along the curve; Multiple matrices along the curve; Click on the arc; Tooth center; Automatically scan the edge of the sample.

5.Automatic focus, X-Y-Z three-axis automatic, one key to complete the entire test process.

Range of Application：

Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.

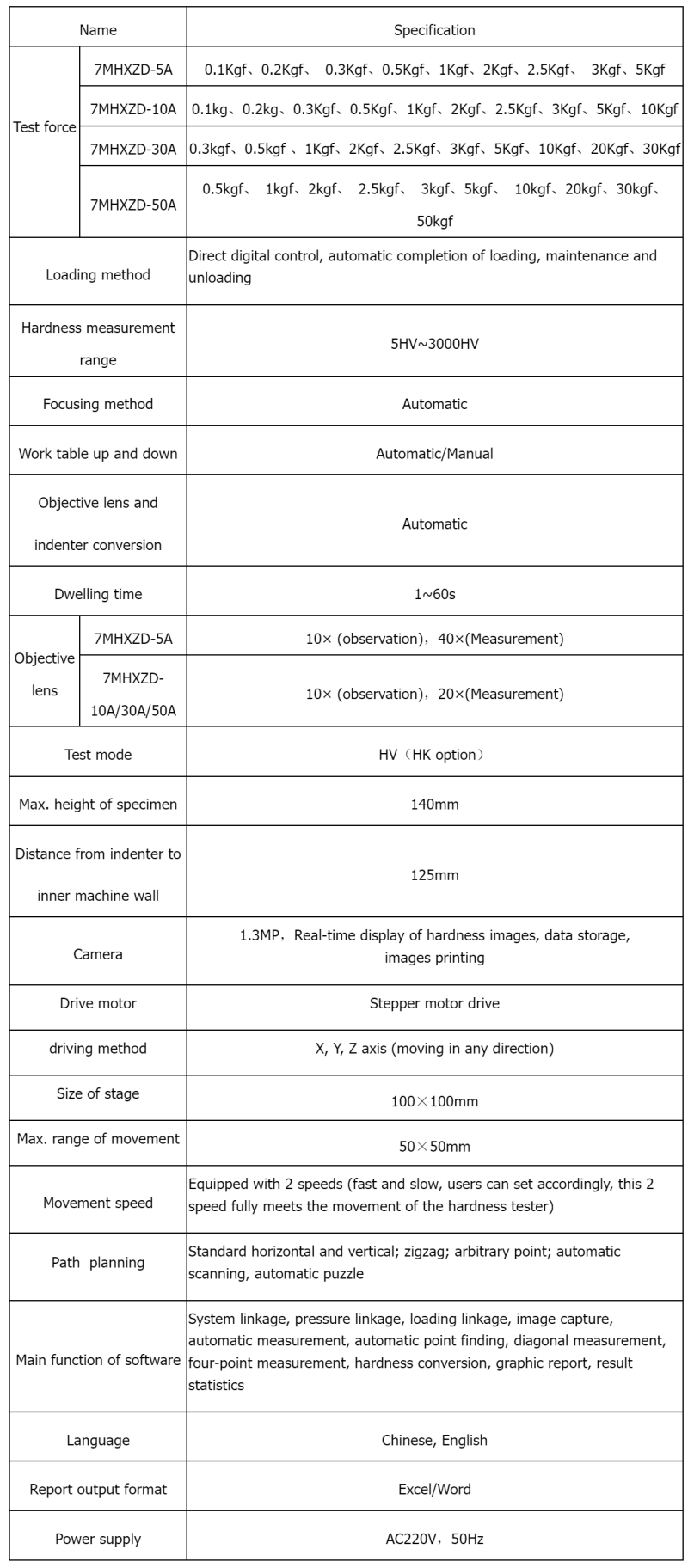

Technical Parameter：
